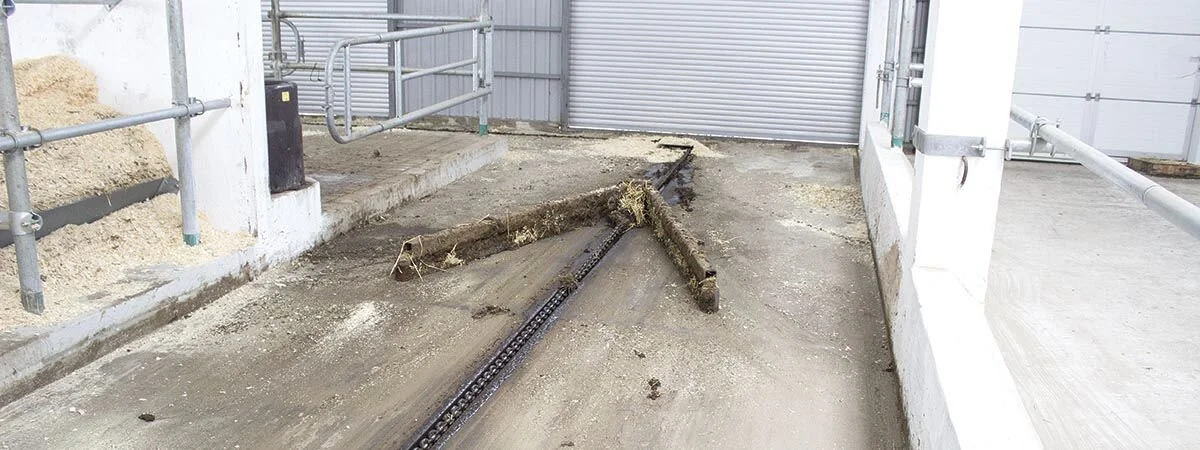

Delta scraper

To operate efficiently on sand, recycled manure or long straw bedding Agriprom designed the unique delta scraper. The V-profile guide in the middle of the floor gives the scraper stability. The scraper pushes the slurry to the end of the passageway where a cross scraping system for example transports it to the collection pit.

Specifications
Motor: 0.55 KW / 0.75 KW / 1.5 KW
Motor voltage: 220 Volt / 380 Volt
Drive unit: gear wheel transmission, 5.4 rpm
Scraper travel speed: 4m/min
Corner roller: 290 mm
Material: 100 kg steel; height 21 cm
Chain: heavy-duty hardened steel 13mm
Control panel: 220 Volt, maximum current protection with adjustable timer and manual over ride

Accessories
Delta scraper: 68-60-240
Rubber: 68-60-255
Frost protection: 68-60-290

Advantages
